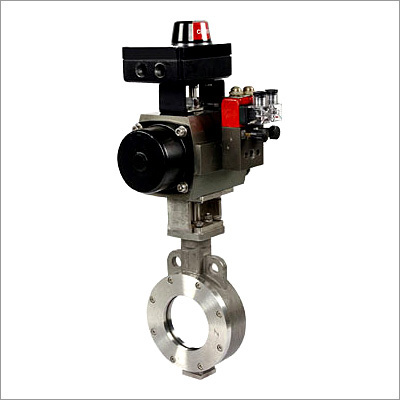

Butterfly Valve

Butterfly Valve
Butterfly Valve
Product Code : 08
Product Description

Butterfly Valve

As a fast growing industry, Micro Pneumatics Pvt. Ltd, is instrumental in designing and exporting a premium quality Butterfly Valve that assures the optimum performance in regulating varied different pressures as well as resisting wearing and corrosion. It is fabricated using supreme grade raw material and cutting edge technology for ensuring the impeding the flow of gas, liquid etc. Our range of Butterfly Valve is used to interrupt or allow the flow of liquid for controlling flow in different industries like, oil, pharmaceutical, chemical etc. In order to meet the specific needs of clients, it is tested on clearly elaborated parameter. Our clients can avail this Butterfly Valve within the promised time-frame from us at affordable prices.

Features:

  • Assuring efficient regulation of flow
  • light-weight & inexpensive series of valves
  • Low maintenance & excellent durability
  • Longer service life and efficient operation
  • Simple and innovative design for higher performance

Valve Capacity Data (USGPM)
Valve Capacity Data (USGPM) MICRO Butterfly Valves are designed for optimum capacity of the valve with minimum possible resistance.


Valve Size

1.5"

2"

2.5"

3"

4"

5"

6"

8"

10"

12"

Cv

82.90

152.50

215.00

312.00

620.00

915.00

1270.00

2295.00

3570.00

5350.00


VALVE SIZE

A

B

H

H1

L

WT.(KGS)

1.5"

42

42

35

52

129

121

200

1.5

2"

45

68

51

60

163

145

250

2.2

2.5"

48

74

60

72

188

165

250

3.2

3"

48

90

72

85

200

170

300

3.8

4"

54

95

100

110

228

195

300

5.5

5"

57

115

123

135

267

220

300

8.0

6"

57

131

143

152

299

235

300

10.0

8"

64

157

192

200

345

250

500

14.5

10"

72

184

239

250

408

301

500

29.0

12"

81

212

290

300

477

350

600

38.0

Lug Type (ANSI 150#)

VALVE SIZE

A

B

H

H1

L

N

P.C.D

LØ

WT.(KGS)

1.5"

42

42

35

52

129

121

200

4

98.40

16

1.75

2"

45

55

45

62

159

141

250

4

120.65

16

2.55

2.5"

48

65

60

76

175

155

250

4

139.70

16

3.75

3"

48

75

75

88

195

165

300

4

152.40

16

4.50

4"

54

97

97

110

230

178

300

8

190.50

16

6.15

Three Piece Screwed / Socket Weld / Butt Weld Ends

VALVE
SIZE

A

B

C

D

SCH.40

SCH.80

O. D.

Wt. kgs

RB

FB

RB

FB

RB

FB

I. D.

I. D.

15

65

9.0

12.7

74

76

117

117

29

21.8

10

15.8

13.8

21.33

0.5

20

71

14.0

19.0

76

91

117

150

35

27.4

13

20.6

18.9

26.67

0.6

25

94

20.0

25.0

91

97

150

150

43

34.1

13

26.6

24.3

33.27

1.1

32

100

25.0

32.0

97

130

150

250

54

42.7

13

35.0

32.4

42.10

1.7

40

106

32.0

38.0

130

133

250

250

58

49.0

13

40.5

38.1

48.51

2.0

50

115

38.0

50.0

133

160

250

585

71

61.0

16

52.4

49.2

60.45

2.9

80

160

63.0

80.0

167

196

585

737

90.5

102

16

77.9

73.7

88.90

4.2

Bill Of Material

COMPONENT

MATERIAL

Body

C I / WCB / CF8 / CF8M

Retainer

CF8 / CF8M

Flap

CF8 / CF8M

Seat

P.T.F.E.

D. Shaft Bearing

A316 / A304

Shaft Bearing

P.T.F.E.

Gland Packing

P.T.F.E.

Gland

A304


COMPONENT

MATERIAL

Gland Follower

CF8 / CF8M

Bottom Shaft Assembly

CF8 / CF8M

Shaft Seal

P.T.F.E.

Lock Pin

A304 / A316

Bolts

A304

Cap Screws

A304

Indicator Plate

A304

Handle Assembly

Stainless Steel
