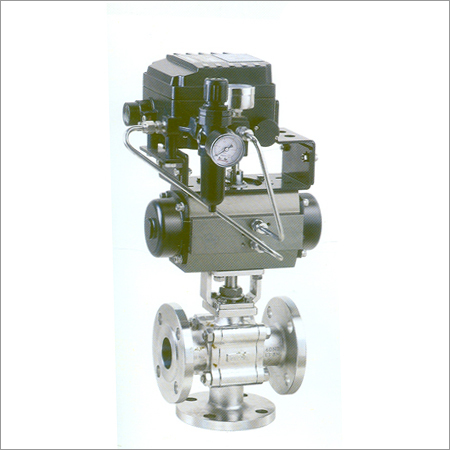

3 Way Ball Valves

3 Way Ball Valves
3 Way Ball Valves
Product Code : 17
Product Description

With vast industry experience and knowledge, we are instrumental in manufacturing, exporting and supplying of high quality 3 way ball valves. These valve are manufactured using quality metal alloy and contemporary technology. We also test our finished range on diverse parameters to ensure that the offered valves are in conformance with latest market standards. Our offered valves are provided with lower & higher pressure applications for chemical, oil and other industries. We are providing these 3 way ball valves in one Inlet and two outlets or Two Inlets and one outlet options according to the needs of our clients

Features:

  • Excellent durability
  • High Performance
  • Maintenance free
  • Trouble-free functionality

Specifications:

  • Mouting Interface: ISO 5211
  • MOC of the Body: WCB, CF8, CF8M, CF3, CF3M (Special on request)
  • Trim: CF8, CF8M, CF3, CF3M (Special on request)
  • Seat / Cavity Filler: PTFE, RPTFE (Special on request)
  • Size: 1/2" to 8"
Two Piece Flanged End

VALVE

A

D

E

P.C.D.

GØ HOLE

H NOS

SIZE

#150

# 300

RB

FB

#150

#300

FB

FB

RB

FB

#150

# 300

#150

# 300

#150

# 300

15

108

140

9

12.7

89

95

74

76

117

117

60.5

66.7

16.0

16

4

4

20

118

152

14

19

98

117

76

91

117

150

69.9

82.6

16

19

4

4

25

127

165

20

25

108

124

91

97

150

150

79.3

88.9

16

19

4

4

32

140

178

25

32

117

133

97

130

150

250

88.9

98.5

16

19

4

4

40

165

190

32

38

127

156

130

133

250

250

98.6

114.3

16

22

4

4

50

178

216

38

50

152

165

133

160

250

585

121

127

19

19

4

8

65

190

241

50

65

178

191

160

173

585

585

140

149

19

22

4

8

80

203

283

63

80

191

210

167

196

585

737

152

168

19

22

4

8

100

229

305

80

100

229

254

205

245

737

925

191

200

19

22

8

8

150

267

403

100

152

279

318

245

280

925

1110

241

270

22

22

8

12

200

292

419

150

203

343

381

280

320

1110

1300

299

330

22

26

8

12


Three Piece Screwed / Socket Weld / Butt Weld Ends

VALVE
SIZE

A

B

C

D

SCH.40

SCH.80

O. D.

Wt. kgs

RB

FB

RB

FB

RB

FB

I. D.

I. D.

15

65

9.0

12.7

74

76

117

117

29

21.8

10

15.8

13.8

21.33

0.5

20

71

14.0

19.0

76

91

117

150

35

27.4

13

20.6

18.9

26.67

0.6

25

94

20.0

25.0

91

97

150

150

43

34.1

13

26.6

24.3

33.27

1.1

32

100

25.0

32.0

97

130

150

250

54

42.7

13

35.0

32.4

42.10

1.7

40

106

32.0

38.0

130

133

250

250

58

49.0

13

40.5

38.1

48.51

2.0

50

115

38.0

50.0

133

160

250

585

71

61.0

16

52.4

49.2

60.45

2.9

80

160

63.0

80.0

167

196

585

737

90.5

102

16

77.9

73.7

88.90

4.2

Material of Construction

Description

Material

Body

Carbon Steel / Stainless Steel

Ends

Carbon Steel / Stainless Steel

Balls

Stainless Steel

Stem

Stainless Steel

Gland

Stainless Steel

Disc Spring

Stainless Steel

Lock Nut

Stainless Steel

Connector Bolt

C.S /S.S

Connector Nut

C.S /S.S

Seat

PTFE / RPTFE

Body Seal

PTFE / RPTFE / Graphite

Thrust Seal

PTFE / RPTFE

Gland Seal

PTFE / RPTFE / Grafoil

Standards

Design and Testing Standard

Description

Product

Standard

Design Standard

Valve

BS 5351

Pressure Temp. Rating

Shell

ANSI B 16.34

Pressure Temp. Rating

Seat

BS 5351 /Manufacturers

Shell Thickness

Body

BS 5351 / ANSI B 16.34

Face to Face

Valve

ANSI B 16.10

Flange Dimensions

Ends

ANSI B 16.5

Screwed Dimensions

Ends

ANSI B 1.20.1 / BS 21 / 5351

Socked Weld Dimensions

Ends

ANSI B 16.11 / BS 21 / 5351

Butt Weld Dimensions

Ends

ANSI B 16.25 / BS 21 / 5351

Testing

Valves

BS 6755 Part 1 / API 598

Fire Safe Testing

Valves

API 607 / BS 6755 Part II

Non Destructive Testing

Shell

ANSI B 16.34

Break Away Torques in Kg-M

SIZE

CLASS 150

CLASS 300

CLASS 800

15 RP

0.2

0.3

0.4

20 RP 15 FB

0.25

0.4

0.6

25 RP 20 FB

0.3

0.5

0.7

32 RP 25 FB

1.0

1.4

1.6

40 RP 32 FB

1.5

2.3

2.9

50 RP 40 FB

1.9

2.5

3.1

65 RP 50 FB

2.7

3.5

4.5

80 RP 65 FB

4.8

8.0

.

100 RP 80 FB

8.0

13.0

.

150 RP 100 FB

12.0

19.0

.

200 RP 150 FB

27.0

41.0

.

200 FB

57.0

86.0

.

Valves Co - efficient : Cv (USGPM)

Valve Size

15

20

25

32

40

50

65

80

100

150

200

Full Bore

12.50

28.00

44.64

80.00

112.00

195.00

315.00

440.00

775.00

1745.00

3110.00

Reduced Bore

6.80

14.80

30.00

47.00

68.00

108.00

-

-

-

-

-
