3 Position System Valve

3 Position System Valve
3 Position System Valve
Product Code : 21
Product Description

3 Position System Valve

Valve designed and Manufactured 3 Position System Valve as per API 609, BS EN 593: 1998, MSS SP 68-1997

Pressure testing API 609, API 598-2004, BS 6755

3 Position System Valve: Micro 3 Position accuracy proven system is compact and simple, used for Weighing/Filling, Loading, Batch Processing with Coarse and Fine filling adjustment

MICRO 3 Position accuracy proven system is compact and simple with functional and serviceable ease, used for weighing / filling / loading station and for mixing batch processing with coarse & fine filling adjustment. This system could be used on Ball, Butterfly and Plug Valves.

Seat Material : PTFE/RPTFE/Special

Seating : Eccentric on body, Flex design, Easily site replaceable type.

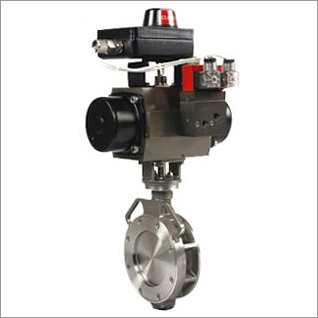

The photograph displays the 3 Position System with MS-100-F07 Actuator on MW 4" Butterfly Valve in Investment Casting.

This system could be on

  • 1/2" to 8" Ball valve
  • 1/2" to 6" Plug valves
  • 1 1/2" to 12" Butterfly valves
